- 10 km detection range Detects radar cross-sections as small as 0.01 m² at up to 10 km, covering long-range perimeter and border scenarios.
- Full 360° azimuth coverage Electronic beam steering across the entire azimuth plane with a 0°–30° elevation range delivers comprehensive situational awareness without mechanical rotation.
- Wide speed discrimination Tracks targets moving at 0.5–120 m/s, enabling detection of slow drones as well as fast ground vehicles within the same system.
- IP66 weatherproof construction Sealed to IP66, the PX2-05 withstands dust and water ingress for reliable fixed-site outdoor operation.
- Wide operating temperature Rated from -35°C to +55°C, supporting deployment in arctic, desert, and tropical security environments.
- Low power consumption ≤400 W power draw from a standard 220 V/50 Hz supply makes the system practical for semi-permanent and permanent installations.
Açıklama

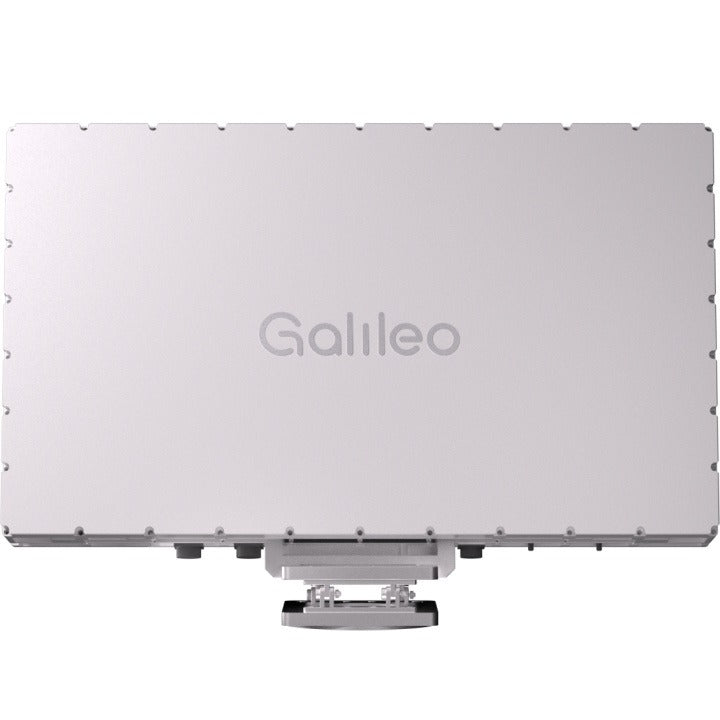

The Galileo PX2-05 is a professional X-band 2D active phased array radar purpose-built for security, government, and inspection applications. Operating across a full 360-degree azimuth and an elevation sweep of 0° to 30°, it detects targets with a radar cross-section as small as 0.01 m² at distances up to 10 km, making it effective against slow-moving objects such as unmanned aerial vehicles, ground vehicles, and personnel. Speed discrimination across the 0.5–120 m/s range provides the versatility needed for complex multi-target environments.
Designed for continuous outdoor deployment, the PX2-05 is rated IP66 against dust and water ingress and operates reliably from -35°C to +55°C. Power is supplied via standard 220 V/50 Hz mains, with a power envelope of ≤400 W keeping running costs manageable for fixed-site installations. The 2D active phased array architecture eliminates mechanical scanning, enabling near-instantaneous beam steering for rapid track initiation and sustained target tracking suitable for perimeter security, border surveillance, and robotic platform integration.
Özellikler
Teknik Özellikler
| Brand | Galileo (GalileoTime) |
|---|---|
| Model | PX2-05 |
| Operating Frequency Band | X-band |
| Array Technology | 2D Active Phased Array |
| Detection Distance | 10 km (RCS = 0.01 m²) |
| Speed Range | 0.5–120 m/s |
| Azimuth Range | 360° |
| Elevation Range | 0°–30° |
| Power Supply | 220 V / 50 Hz |
| Power Consumption | ≤400 W |
| Operating Temperature | -35°C to +55°C |
| Ingress Protection | IP66 |
Sektörler
Sıkça Sorulan Sorular
The PX2-05 is an X-band 2D phased array radar used for perimeter security, border and facility surveillance, government monitoring, and inspection scenarios where long-range detection of small targets—including UAVs, ground vehicles, and personnel—is required.
Its 2D active phased array technology enables electronic beam steering across a full 360° azimuth, detecting targets with a radar cross-section as small as 0.01 m² at distances up to 10 km and tracking objects across a speed range of 0.5–120 m/s.
It is suited to security operations, government border and facility protection, industrial site inspection, and emergency response command environments requiring continuous radar surveillance.
Yes, Robotix Market ships the Galileo PX2-05 worldwide. The product is covered by the manufacturer's warranty as provided by GalileoTime.
You can request a quote through Robotix Market's website. Our team will confirm current availability, configuration options, and delivery requirements before finalising your order.
