- 3,400 W Output on 220–240 Vac Delivers full high-power charging on standard 220–240 Vac mains, supporting rapid battery turnaround for commercial agricultural drone operations. On 100–120 Vac, outputs up to 1,300 W.
- Smart Battery Monitoring Monitors XAG Smart SuperCharge battery status in real time during charging and automatically stops the charge cycle when complete, protecting battery health and safety.
- Forced-Air Cooling with Full Protection Suite Equipped with active forced-air cooling and protective functions including undervoltage, overvoltage, overtemperature protection, and fault isolation for reliable sustained field operation.
- Portable Field Charger Design Compact at 329.73 × 118.44 × 110.44 mm and 4.6 kg, the CM13600S is built to be transported to field sites, trailers, and mobile charging stations rather than fixed to workshop infrastructure.
- Wide AC Input Compatibility Accepts 100–120 Vac and 220–240 Vac input at 50/60 Hz, allowing operation across different regional electrical standards for global agricultural deployments.
Beschrijving

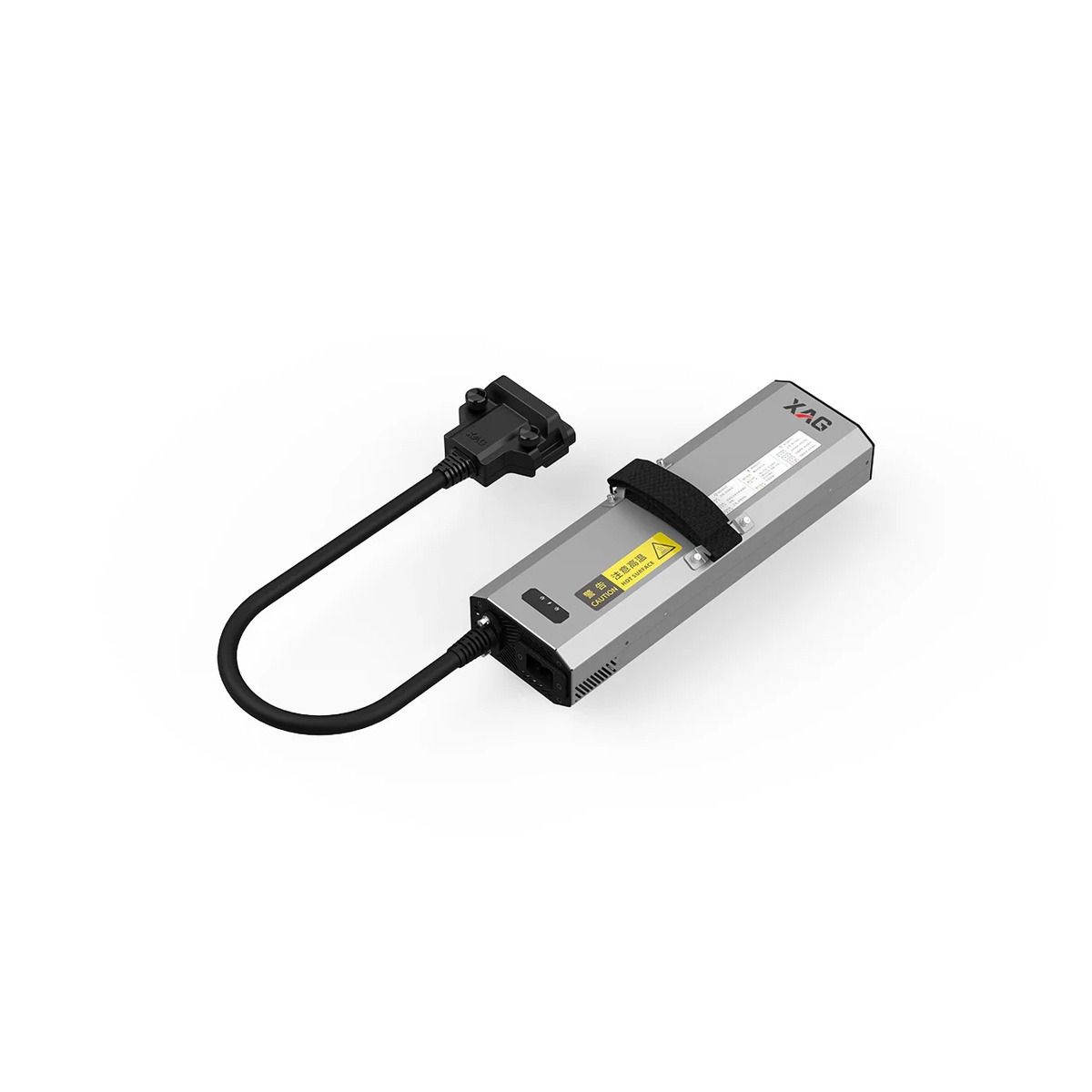

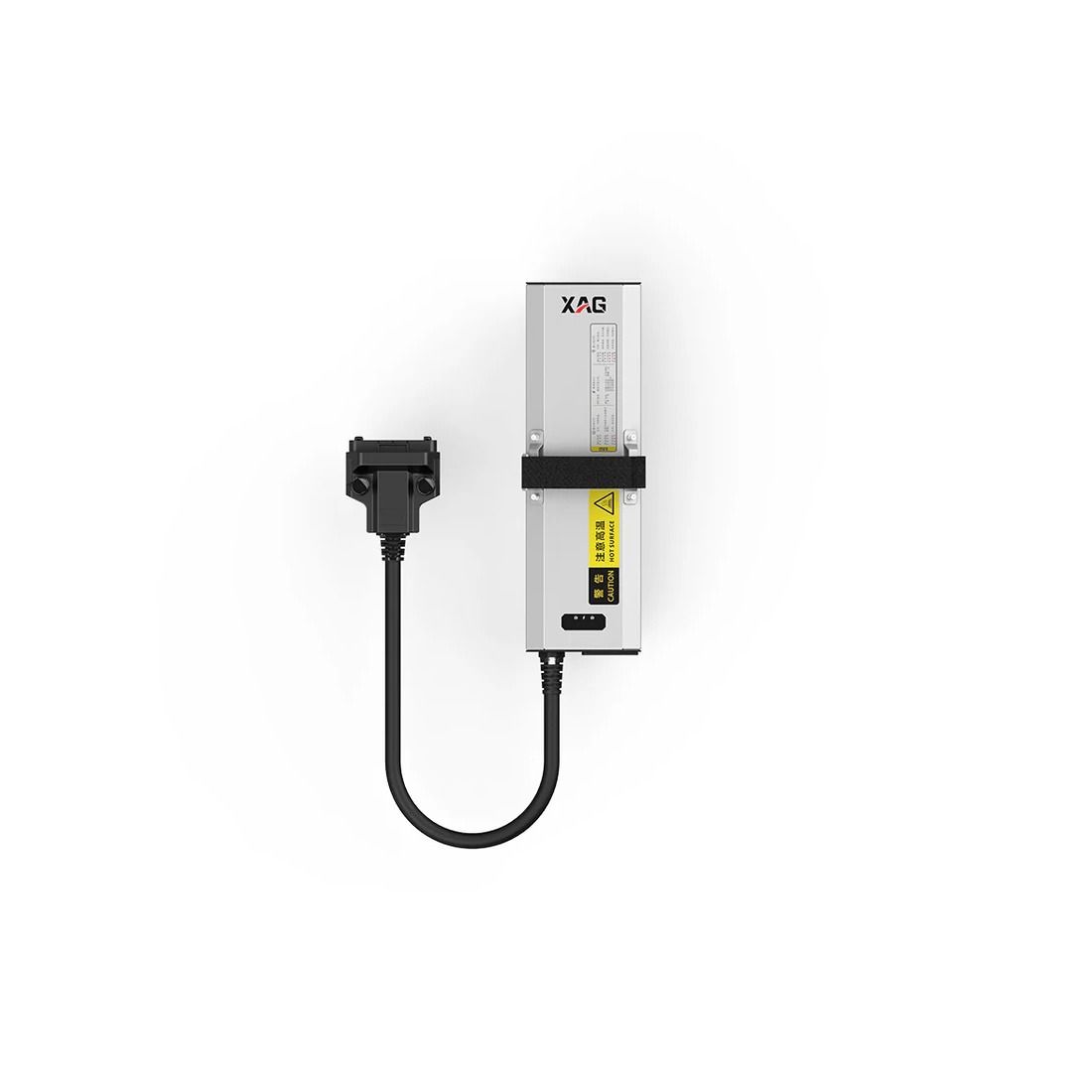

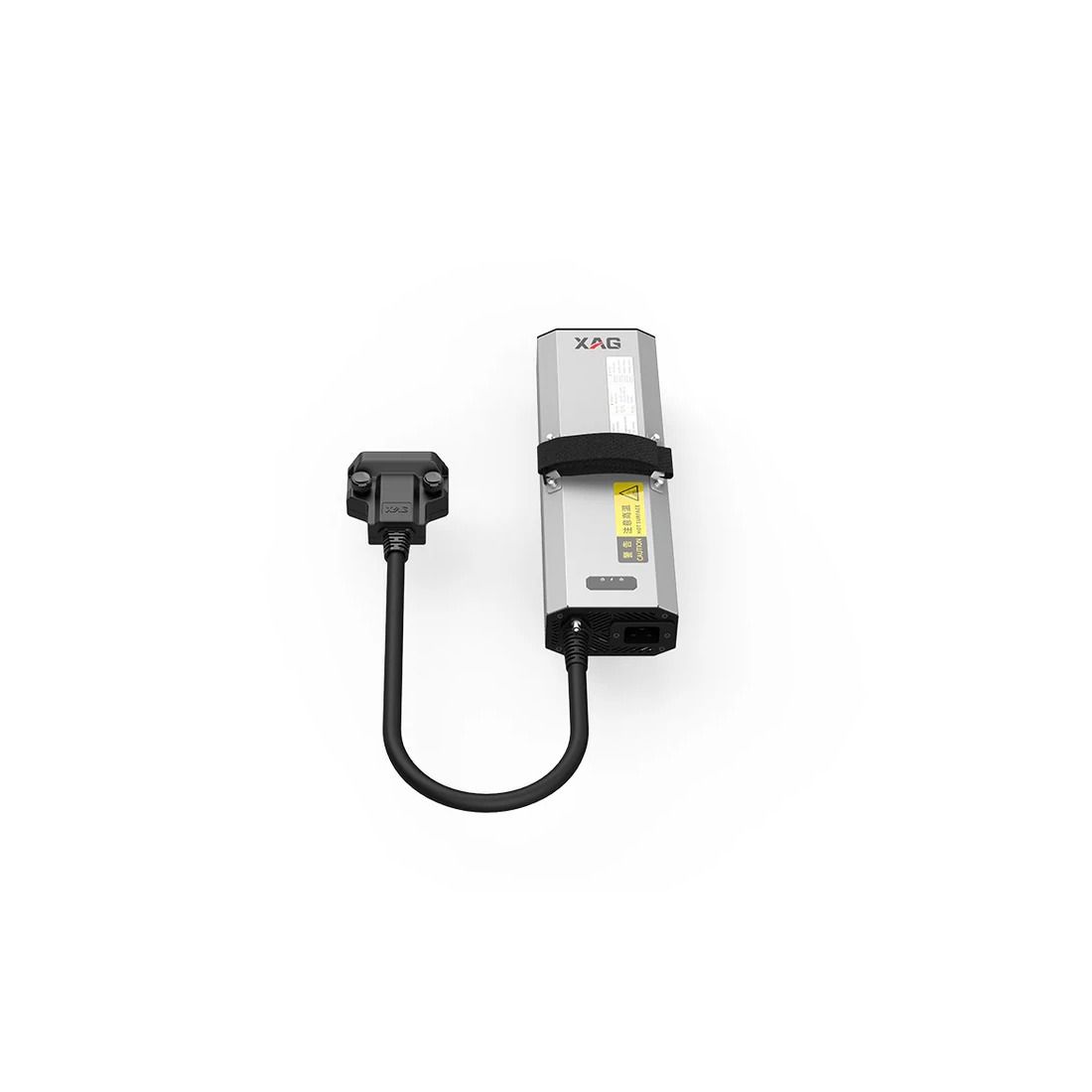

The XAG CM13600S is a high-power smart charger built for XAG's SuperCharge battery ecosystem, delivering up to 3,400 W of output on 220–240 Vac infrastructure and 1,300 W on 100–120 Vac systems. Pairing directly with XAG Smart SuperCharge batteries—most notably the B141050 used in P150 Max operations—the CM13600S monitors battery status in real time during charging and halts automatically when the cycle is complete. Its forced-air cooling system and suite of protective functions, including undervoltage, overvoltage, and overtemperature protection, reflect the demands of sustained field charging environments where equipment must be reliable across long operational days.
Physically compact at 329.73 × 118.44 × 110.44 mm and 4.6 kg, the CM13600S is designed for portability across job sites—deployable at field edges, from trailers, or alongside mobile generator setups. Its wide AC input range allows operation across global electrical standards, a practical advantage for commercial operators and fleet services working across different regions and infrastructure types. On 220–240 Vac, it can bring a B141050 battery from 30% to 95% charge in approximately 12 minutes under laboratory conditions, making it the backbone of high-throughput battery rotation workflows for commercial agricultural drone fleets.
Kenmerken
Specificaties
| Brand | XAG |
|---|---|
| Model | CM13600S Charger (09-017-00069) |
| Internal Model Number | M2CM13600C |
| Input Voltage (Low Range) | AC 100–120 Vac, 50/60 Hz, 15.0 A |
| Input Voltage (High Range) | AC 220–240 Vac, 50/60 Hz, 16.0 A |
| Output Voltage | 59.92 Vdc |
| Output Power (100–120 Vac) | 1,300 W |
| Output Power (220–240 Vac) | 3,400 W |
| Output Plug Quantity | 1 |
| Cooling Method | Forced-air cooling |
| Dimensions | 329.73 × 118.44 × 110.44 mm |
| Weight | 4.6 kg |
| Operating Ambient Temperature | -20°C to 40°C |
| Compatible Battery | XAG B141050 Smart SuperCharge Battery |
Sectoren
Veelgestelde vragen
The CM13600S is a high-power smart charger designed for XAG Smart SuperCharge batteries, primarily in the P150 Max agricultural drone ecosystem. It is used to rapidly recharge batteries between drone sorties to support continuous agricultural spraying and spreading operations.
On 220–240 Vac input, the charger delivers up to 3,400 W and can charge a B141050 battery from 30% to 95% in approximately 12 minutes under laboratory conditions. On 100–120 Vac, output is up to 1,300 W. Actual results depend on battery condition, temperature, and maintenance.
The CM13600S is designed for commercial precision agriculture, supporting drone operators who need fast battery rotation to maximize treated area per day during narrow crop-protection windows. It is well suited to large farms, contract application services, and fleet operations.
Yes, Robotix Market ships worldwide. The charger is covered by the XAG manufacturer warranty; terms are defined by XAG. Robotix Market does not provide installation or on-site service.
You can order directly from the Robotix Market store or contact us for bulk pricing if you are building a multi-charger setup or equipping a commercial drone fleet with a full SuperCharge power system.
