- 3 kW fast charging in 60 minutes Delivers 48 V / 60 A at up to 3,000 W, fully charging compatible 48 V Small AMR batteries in approximately 60 minutes.
- Compact, lightweight form factor At 452 × 485 × 385 mm and 16 kg, the SCS-C4860 is easy to position and reposition as facility layouts evolve.
- Six-layer safety protection Over-voltage, over-current, reverse connection, short circuit, leakage, and over-temperature safeguards ensure safe continuous charging.
- Three charging modes and manual option Protocol, status, and voltage charging modes with user-customizable curves, plus automatic and manual fast-charging for flexible deployment.
- Roboshop remote monitoring Real-time remote status viewing, control, and monitoring via Roboshop platform for full fleet visibility without on-site presence.
- Global AC input compatibility Accepts 110–120 V and 220–240 V AC at 50/60 Hz for deployment across facilities in different regions.
Descrizione
The SEER Robotics SCS-C4860 is a compact 3 kW automatic charging station engineered for the 48 V Small AMR series, combining fast charging performance with a space-efficient form factor suited to tighter facility footprints. Rated at 48 V / 60 A for a maximum output of 3,000 W, the SCS-C4860 is capable of charging a compatible robot battery to 100% in just 60 minutes, keeping small AMR fleets productive across continuous multi-shift operations. Its compact 452 × 485 × 385 mm dimensions and 16 kg weight make it among the more easily positioned and repositioned stations in the SEER Robotics charging lineup, supporting agile facility layout changes.
Six layers of protection—over-voltage, over-current, reverse connection, short circuit, leakage, and over-temperature—deliver a safe and worry-free charging environment. The SCS-C4860 supports three charging modes (protocol, status, and voltage) with user-customizable curves, together with both automatic docking and manual fast-charging options for maximum operational flexibility. Remote monitoring and control via Roboshop provides real-time visibility of machine status across all connected stations, giving fleet managers the oversight they need without requiring on-site presence. Wide AC input compatibility (110–120 V / 220–240 V) makes the SCS-C4860 deployable across global facilities.
Caratteristiche
Specifiche
| Brand | SEER Robotics |
|---|---|
| Model | SCS-C4860 |
| Product Name | Robotic Automatic Charging Station |
| Dimensions (L × W × H) | 452 × 485 × 385 mm |
| AC Input Voltage | 110–120 V / 220–240 V |
| Input Frequency | 50 / 60 Hz |
| DC Output Voltage | 32–60 V |
| DC Output Current | 30 / 60 A |
| Maximum Output Power | 1,500 / 3,000 W |
| Weight | 16 kg |
| Network Connectivity | Wi-Fi, Wired, 5G |
| Working Temperature | 0°C to 40°C |
| Plug Specification | GB 16A / optional |
| Compatible Robot | 48 V Small AMR series |
Settori industriali
Domande frequenti
The SCS-C4860 is an automatic charging station for SEER Robotics 48 V Small AMR series robots, enabling autonomous docking and fast recharging to maintain continuous small-AMR fleet operation in industrial, logistics, and warehouse facilities.
It delivers 48 V at up to 60 A (3,000 W maximum) with six-layer safety protection, three charging modes with customizable curves, automatic and manual fast-charging, and Roboshop remote monitoring—capable of fully charging in approximately 60 minutes.
It is suited to manufacturing plants, warehouses, logistics centers, and distribution facilities deploying SEER Robotics 48 V Small AMR fleets that require compact, fast charging infrastructure with remote management.
Yes, Robotix Market ships the SEER Robotics SCS-C4860 worldwide. The product is covered by the manufacturer's warranty as provided by SEER Robotics.
Contact the Robotix Market team via the website's quote or inquiry form. We will confirm robot fleet compatibility, provide pricing, lead times, and shipping details for your facility.

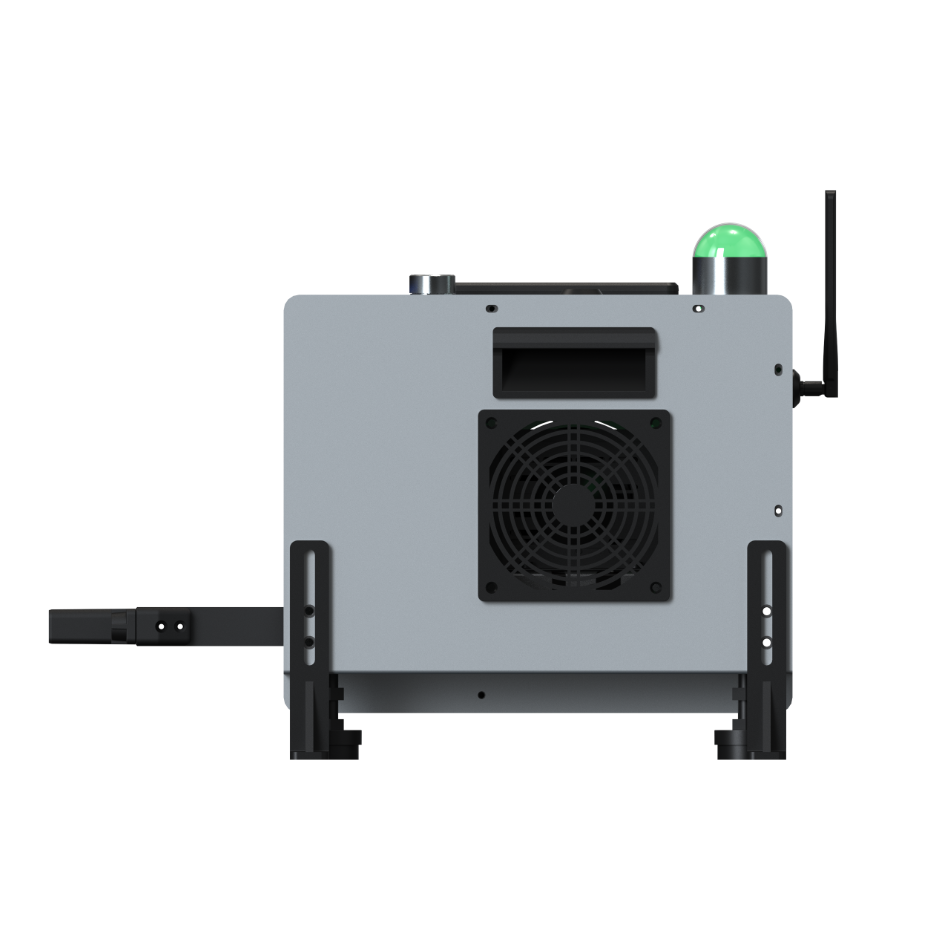

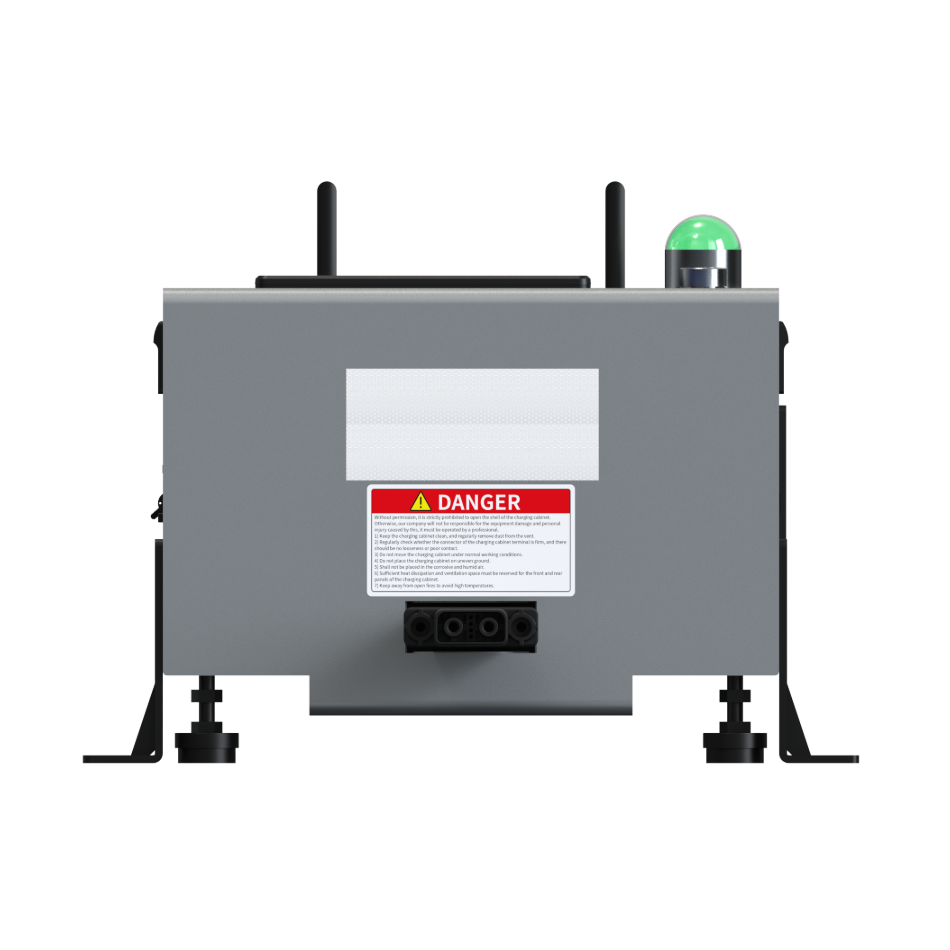

SEER Robotics SCS-C4860 Robotic Automatic Charging Station
