- Made for the H2 battery Charges the 15 Ah, 0.972 kWh quick-release pack used by the H2, H2 EDU and H2 Plus.
- 100–240 V input Accepts mains at 50/60 Hz, drawing up to 5.0 A.
- 76.5 V output up to 6.6 A Delivers up to 498.96 W to the pack.
- About 2 h 40 min per charge Measured at room temperature (25 °C); a hot environment slows charging.
- Activates new batteries A new H2 battery leaves the factory in shipping mode and is woken by its first charge.
- Compact and portable The charger measures 233 × 110 × 52 mm, easy to keep with the robot or at a second site.
Beschreibung

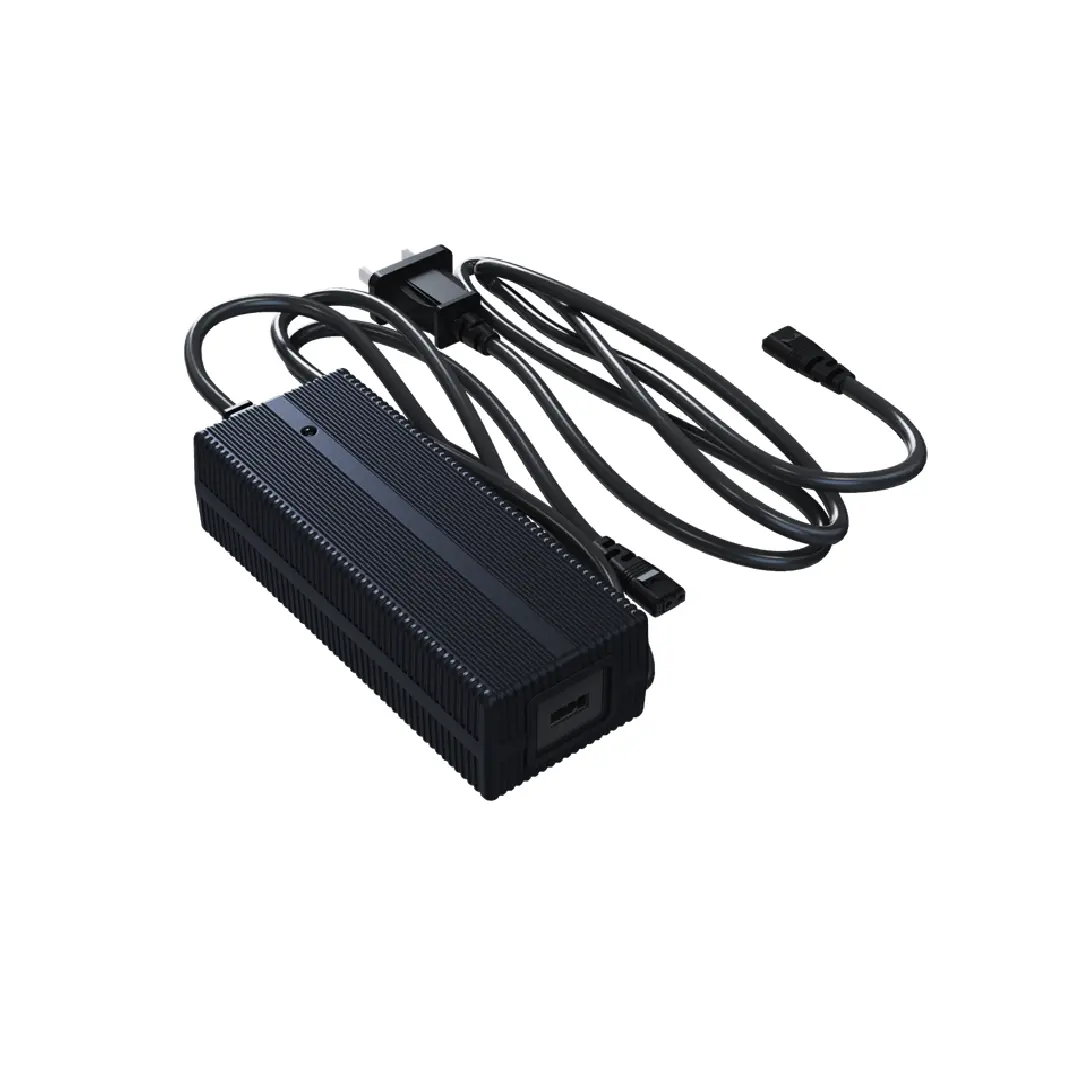

This is the plug-in charger made for the Unitree H2's 15 Ah (0.972 kWh) quick-release battery. It takes 100–240 V mains at 50/60 Hz and delivers 76.5 V at 2 to 6.6 A, up to 498.96 W, which refills an H2 battery in about 2 hours 40 minutes at room temperature.
An H2 is delivered with one charger. A second one is for teams running two or more batteries, a robot that moves between sites, or a replacement. Because the battery is always charged outside the robot, a second charger lets two packs charge at the same time, or keeps one ready at another location.
The charger works together with the battery's own protection system. During charging the pack's four LEDs blink once per second to show the charge level and go dark when it is full, and an overheating fault is raised if the charging temperature passes 50 °C. The first charge also wakes a new battery from its shipping mode. The charger itself measures 233 × 110 × 52 mm.
It charges the pack used by the H2, H2 EDU and H2 Plus; it is not a charger for the wheeled H2-D's 48 V base batteries. The mains plug type for your country is confirmed at quote.
Key Capabilities
- Made for the H2 battery: Charges the 15 Ah, 0.972 kWh quick-release pack used by the H2, H2 EDU and H2 Plus.
- 100–240 V input: Accepts mains at 50/60 Hz, drawing up to 5.0 A.
- 76.5 V output up to 6.6 A: Delivers up to 498.96 W to the pack.
- About 2 h 40 min per charge: Measured at room temperature (25 °C); a hot environment slows charging.
- Activates new batteries: A new H2 battery leaves the factory in shipping mode and is woken by its first charge.
- Compact and portable: The charger measures 233 × 110 × 52 mm, easy to keep with the robot or at a second site.
Buying through Robotix Market
This unit is sourced new through established distribution channels and ships worldwide with the full manufacturer warranty. Technical support is coordinated with the manufacturer's own service network. Deployment scope, configuration, and commissioning responsibilities are agreed as part of the quotation — on-site installation is not included in the product price.
Funktionen
Technische Daten
| Brand | Unitree Robotics |
|---|---|
| Model | H2 Battery Charger |
| Product Type | Plug-in battery charger (accessory) |
| Compatible With | Unitree H2 15 Ah quick-release battery (H2, H2 EDU, H2 Plus) |
| Input | 100–240 V~, 50/60 Hz, 5.0 A |
| Output | 76.5 V, 2–6.6 A, 498.96 W |
| Charging Time | About 2 h 40 min (measured at 25 °C; depends on the charging environment) |
| Thermal Protection | Overheating fault alarm when the charging temperature exceeds 50 °C |
| Dimensions | 233 × 110 × 52 mm |
| Quantity | 1 charger |
| Mains Plug Type | Confirm at quote |
| Weight | Confirm at quote |
Branchen
Häufig gestellte Fragen
The Unitree H2's 15 Ah (0.972 kWh) quick-release battery, used by the H2, H2 EDU and H2 Plus. It is not a charger for the H2-D's 48 V base batteries.
About 2 hours 40 minutes at room temperature (25 °C). Heat slows charging, so let a pack that has just come out of the robot cool down first.
Yes, one. A second charger is for charging two batteries at once, keeping a charger at a second site, or replacing a lost or damaged unit.
No. Switch the battery off and take it out of the robot first, plug the charger into mains power, then connect it to the battery.
Its input is rated 100–240 V at 50/60 Hz. The plug type for your country is confirmed at quote.
The Unitree H2 Battery Charger is priced at 128.138 Ft in your market.
