- World's first SIL 2 / PLd robot controller Certified to ISO 13849-1 Cat.3 PLd and IEC 61508 / IEC 62061 SIL 2, meeting the strictest functional safety requirements for industrial AMR deployments.
- Rich I/O and bus interfaces 24 DI + 16 DO digital I/O, two sin/cos security encoder inputs, 2-way CAN, 3-way RS485, 5-way Gbps TSN Ethernet, and dual-band 2.4G/5G Wi-Fi.
- High-performance 8-core ARM processor Optimal memory configuration supports complex navigation algorithms, AI inference, and real-time robot control workloads.
- IP65-rated, wide temperature range Rated IP65 for dust and water resistance; operates from -30°C to 55°C and stores from -40°C to 70°C, suiting harsh industrial environments.
- Global certifications: CE and UL/ETL Holds CE-EMC, CE-LVD, CE-RED, UL 61010-1, UL 61010-2-201, and CSA C22.2 certifications for European and North American market compliance.
- ±5 mm navigation accuracy Navigation accuracy of ±5 mm and ±1° at speeds up to 2 m/s, supporting precise docking and repeatable routing in automated facilities.
الوصف

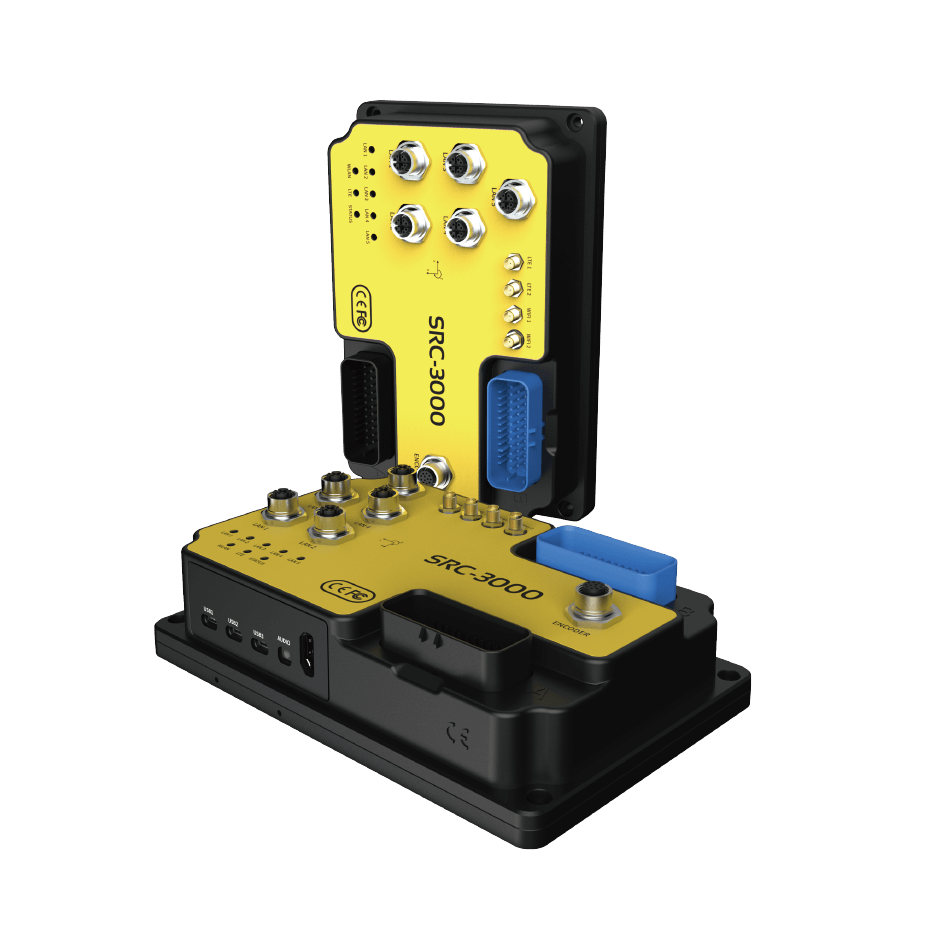

The SEER Robotics SRC-3000FS is described by SEER as the world's first robot controller to achieve functional safety certification to ISO 13849-1 Cat.3 PLd and IEC 61508 SIL 2, making it a significant choice for deployments where machine safety standards are a regulatory or contractual requirement. The controller pairs an 8-core ARM processor with 24 DI and 16 DO interfaces, two sin/cos security encoder inputs, and a rich connectivity stack—five Gbps TSN-capable Ethernet ports, dual-band Wi-Fi, CAN, RS485, USB 2.0, and USB 3.0—giving integrators the interfaces needed for complex autonomous mobile robot designs. Its IP65 rating and operating temperature range of -30°C to 55°C support deployment in demanding industrial environments.
The SRC-3000FS holds CE-EMC, CE-LVD, CE-RED, and UL/ETL certifications, satisfying both European and North American compliance requirements in a single, compact, highly integrated unit. Navigation accuracy is rated at ±5 mm and ±1°, with a maximum driving speed of 2 m/s. SEER positions the controller for factory automation, warehouse transport, fleet management, and autonomous mobile robot development projects where functional safety certification is non-negotiable.
الميزات
المواصفات
| Brand | SEER Robotics |
|---|---|
| Model | SRC-3000FS |
| Weight | 1.5 kg |
| Safety Integrity Level | IEC 61508 SIL 2 / IEC 62061 SIL 2 |
| Safety Performance Level | ISO 13849-1 Cat.3 PLd |
| Digital Input | 24-way DI |
| Digital Output | 12-way DO (400 mA) + 4-way Power DO (24 V / 1 A) |
| Ethernet | 5-way Gbps (TSN) |
| Wi-Fi | Dual-band 2.4G / 5G 802.11ac 2T2X |
| Bus Interfaces | CAN 2-way, RS485 3-way |
| Navigation Accuracy | ±5 mm, ±1° |
| Max Driving Speed | 2 m/s |
| IP Rating | IP65 |
| Operating Temperature | -30°C to 55°C |
الصناعات
الأسئلة الشائعة
The SRC-3000FS is a safety-certified robot controller designed for autonomous mobile robots in factory automation, warehouse logistics, and industrial AMR development. It provides navigation, motion control, and safety functions in a single compact unit.
It is certified to ISO 13849-1 Cat.3 PLd and IEC 61508 / IEC 62061 SIL 2—described by SEER as the world's first robot controller to achieve these functional safety levels—along with CE-EMC, CE-LVD, CE-RED, UL 61010-1, UL 61010-2-201, and CSA C22.2 certifications.
It is suited to industrial manufacturing, warehouse automation, and logistics environments where autonomous mobile robots must meet stringent functional safety standards, including fleet management, automated transport, and integrated AMR systems.
Yes, Robotix Market ships the SEER Robotics SRC-3000FS worldwide. The product is covered by the manufacturer's warranty as provided by SEER Robotics.
Pricing for the SRC-3000FS is quotation-based. Contact Robotix Market through the website's inquiry or quote form and our team will confirm configuration options, compatibility, lead time, and shipping details.
